Blower

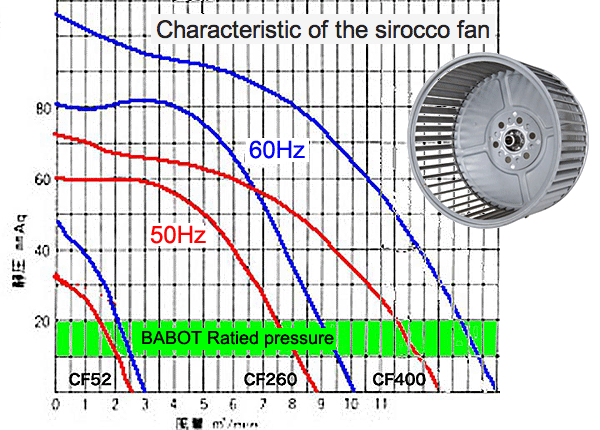

 CF Centrifugal Fan (Standard, Quiet)

item


CF50


CF170


CF260


CF400


wearable
volume/15mmAq 1.5m3 4.5m3 7.5m3 11m3 3m3
max volume/min 2.6m3 7.0m3 10m3 13m3 5m3
noise

55dB

65dB 67dB 77dB 55dB
electric 52w 170w 260w 400w .
size

150h
194
173

220h
253
243
h220
253
243
250h
310
307
.
weight

2.2kg

8.6kg 7.3kg 11.kg 0.7kg
 BF Box Fan (Soundless)
item
BF35

BF57

BF120

BF144

BF410
volume/15mmAq   5m3   12m3 23m3
max volume/min 5m3 7m3   17m3 28m3
noise 26dB 38dB 28db 35db 43dB
electric 35w 57w 120w 144w 410w
size 200h
270w
250d
450h
280w
280d
440h
415w
275d
490h
370w
320d
590h
400w
380d
weight 8kg 7.7kg 14.5kg 17.0kg 26.4kg
ロック圧 12mmAq

 AF Axial Fan (Large volume)

item
AF315

AF400

AF550

AF500

AF65
volume/15mmAq 40m3 40m3 66m3 25m3 4.0m3
max volume/min 57m3 90m3 95m3 47m3 11m3
noise 57dB 58dB 58dB 80dB 65dB
electric 315w 400w 550w 500w 65w
size 521w
521d
440h
609d
609w
460h
700h
700w
700d
320h
314w
314d
110h
180w
208d
weight 22.kg 35.kg 51.kg 18.kg 2.6kg

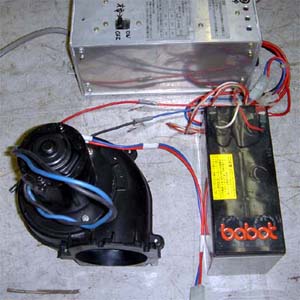

 DF DC Fan (Compact)

item

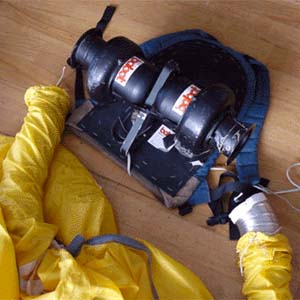

wearable

DF
DF
DF

.
volume/15mmAq m3 m3 m3 m3 m3
max volume/min 3m3 m3 m3 m3 m3
noise dB dB dB dB dB
electric DC12v48w
30min max.
DC12v A DC12v A DC12v A DC12v A
size 120h
170w
140d
h
w
d
h
w
d
h
w
d
h
w
d
weight 0.7kg g g g g

 pressure control valve


automatic

hand-operat

hand-operat
duct-operat
intake pipe

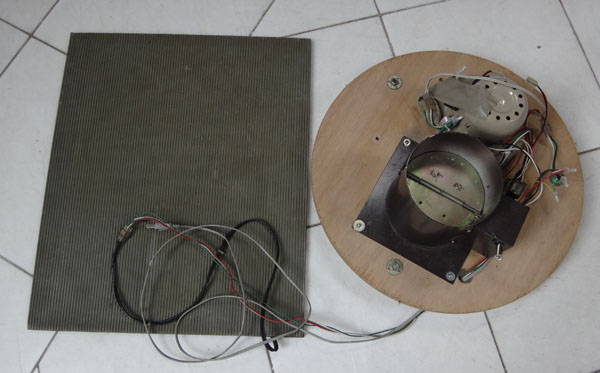

 deflation system


TM


TMw


vent150φ


vent 300φ
