　reversible motor
ITEM
2RX50


2RK50(ccw)

 3RK50


4RK50


5RK75
capacity
1.2sec/170mm 		  pull 2kg
2sec/200mm
 pull 3.3kg
2sec/300mm
wire   275L   240L 430L
electric   6w   25w 40w
size

205h
200w
150d

   245h
245w
145d		 365h
360w
220d
weight

1.5kg

   2kg 5kg
quantity
in stock		 50=4 50(ccw)=51
50(cw)=7
75(ccw)=11
75(cw)=5
100=2
150=1		   4RK50=4 75=25
75lean=7
75horizontal=15
　induction motor
ITEM


2IK50
4IK50


5IK150


GLM
capacity

pull 1kg
1.2sec/170mm

 pull 2kg
2sec/200mm		 pull 3.3kg
2sec/300mm
 pull 30kg
12sec/450mm
electric   6w 25w 40w 200w
size

205h
200w
150d

 245h
245w
145d		 365h
360w
220d		 540h
520w
200d
weight

1.5kg

 2kg 5kg 15kg
quantity
in stock		   50=7
25=2
75=5
100=1
150=6		 50=52
30=2
75=15
100=2 		150=3
50=1
100=1		 GLM=16
　special motor
ITEM
2RK flat
3RK flat
3IK both-axis

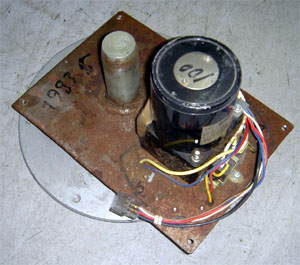

3RK-3P
servomotor
capacity
wire
electric 1.6w     15w 120w
size 400丸
150高		     370h
370w
160d		 150h
300w
180d
weight 4.5kg     3.5kg 1kg+1kg
      75=2

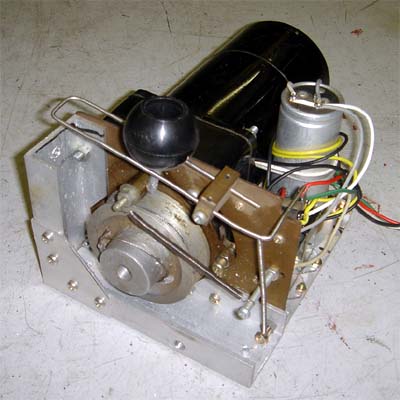

　winch
ITEM
2AM

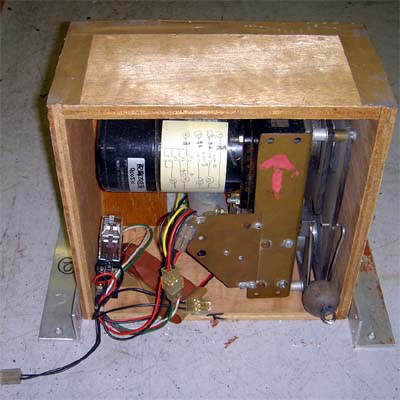

4AMb
4AM
5AM
5AMb
capacity   pull 21kg
6sec/600mm		 pull 21kg
6sec/600mm		 pull 50kg
5sec/600mm
electric   25w 25w 90w
size   100h
200w
210d		   250h
600w
300d
weight   4kg   8kg
　dc-motor
ITEM

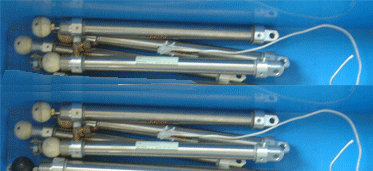

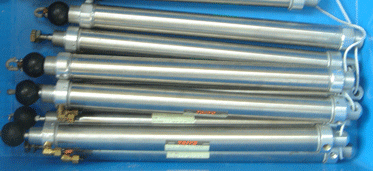

　air-cylinder
ITEM
cylinder20
cylinder32
valve
linicom910

linicom610
capacity pull 　kg
sec/ mm		 pull 　kg
sec/ mm		   16L/min
0.15MPa		 8L/min
0.15MPa
electric - -   90/85w 60/52w
size       208w, 150d, 154h 188w, 104d, 141h
weight       4.9kg 3.2kg

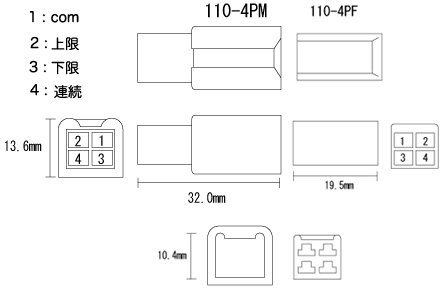

wiring converter　

　(1)com　(2)stop at uper limit　(3)continuity roll　(4)stop at under limit
